Enformer usage neanderthal - jupyter notebook version

# Install Required Python Packages (First Run Only)
first_time = False  # Set to False after first run

if first_time:
    %pip install tensorflow
    ## this requires  numpy<2.2.0,>=1.26.0 (from tensorflow)
    ## it will uninstall numpy not compatible with tensorflow

    import platform
    if platform.processor() == 'arm':
        print("Apple Silicon detected, installing tensorflow-metal...")
        %pip install tensorflow-metal
    else:
        print("Not running on Apple Silicon, skipping tensorflow-metal installation")

    %pip install tensorflow_hub
    # %pip install joblib # already installed
    %pip install kipoiseq
    # %pip install pyfaidx # already installed
    # %pip install pandas # already installed
    # %pip install numpy # already installed
    # %pip install matplotlib # already installed
    # %pip install seaborn # already installed
    %pip install cyvcf2

    %pip install Bio

# Import Libraries and Define Utility Functions
import tensorflow as tf

# Make sure the GPU is enabled
assert tf.config.list_physical_devices('GPU'), 'Start the colab kernel with GPU: Runtime -> Change runtime type -> GPU'
print("Num GPUs Available: ", len(tf.config.list_physical_devices('GPU')))

import tensorflow_hub as hub # for interacting with saved models and tensorflow hub
import joblib
import gzip # for manipulating compressed files
import kipoiseq # for manipulating fasta files
from kipoiseq import Interval # same as above, really
import pyfaidx # to index our reference genome file
import pandas as pd # for manipulating dataframes
import numpy as np # for numerical computations
import matplotlib.pyplot as plt # for plotting
import matplotlib as mpl # for plotting
import seaborn as sns # for plotting
import pickle # for saving large objects
import os, sys # functions for interacting with the operating system
import cyvcf2

import Bio
from Bio.Seq import Seq
def create_rev_complement(dna_string):
    return(str(Seq(dna_string).reverse_complement()))

import io
import os
import gzip

# Define Enformer Model Classes and Sequence Extraction

SEQUENCE_LENGTH = 393216


class Enformer:

  def __init__(self, tfhub_url):
    self._model = hub.load(tfhub_url).model

  def predict_on_batch(self, inputs):
    predictions = self._model.predict_on_batch(inputs)
    return {k: v.numpy() for k, v in predictions.items()}

  @tf.function
  def contribution_input_grad(self, input_sequence,
                              target_mask, output_head='human'):
    input_sequence = input_sequence[tf.newaxis]

    target_mask_mass = tf.reduce_sum(target_mask)
    with tf.GradientTape() as tape:
      tape.watch(input_sequence)
      prediction = tf.reduce_sum(
          target_mask[tf.newaxis] *
          self._model.predict_on_batch(input_sequence)[output_head]) / target_mask_mass

    input_grad = tape.gradient(prediction, input_sequence) * input_sequence
    input_grad = tf.squeeze(input_grad, axis=0)
    return tf.reduce_sum(input_grad, axis=-1)

class EnformerScoreVariantsRaw:

  def __init__(self, tfhub_url, organism='human'):
    self._model = Enformer(tfhub_url)
    self._organism = organism

  def predict_on_batch(self, inputs):
    ref_prediction = self._model.predict_on_batch(inputs['ref'])[self._organism]
    alt_prediction = self._model.predict_on_batch(inputs['alt'])[self._organism]

    return alt_prediction.mean(axis=1) - ref_prediction.mean(axis=1)

class EnformerScoreVariantsNormalized:

  def __init__(self, tfhub_url, transform_pkl_path,
               organism='human'):
    assert organism == 'human', 'Transforms only compatible with organism=human'
    self._model = EnformerScoreVariantsRaw(tfhub_url, organism)
    with tf.io.gfile.GFile(transform_pkl_path, 'rb') as f:
      transform_pipeline = joblib.load(f)
    self._transform = transform_pipeline.steps[0][1]  # StandardScaler.

  def predict_on_batch(self, inputs):
    scores = self._model.predict_on_batch(inputs)
    return self._transform.transform(scores)

class EnformerScoreVariantsPCANormalized:

  def __init__(self, tfhub_url, transform_pkl_path,
               organism='human', num_top_features=500):
    self._model = EnformerScoreVariantsRaw(tfhub_url, organism)
    with tf.io.gfile.GFile(transform_pkl_path, 'rb') as f:
      self._transform = joblib.load(f)
    self._num_top_features = num_top_features

  def predict_on_batch(self, inputs):
    scores = self._model.predict_on_batch(inputs)
    return self._transform.transform(scores)[:, :self._num_top_features]

# @title `variant_centered_sequences`

class FastaStringExtractor:

    def __init__(self, fasta_file):
        self.fasta = pyfaidx.Fasta(fasta_file)
        self._chromosome_sizes = {k: len(v) for k, v in self.fasta.items()}
    #import pd.Interval as Interval
    def extract(self, interval: Interval, **kwargs) -> str:
        # Truncate interval if it extends beyond the chromosome lengths.
        chromosome_length = self._chromosome_sizes[interval.chrom]
        trimmed_interval = Interval(interval.chrom,
                                    max(interval.start, 0),
                                    min(interval.end, chromosome_length),
                                    )
        # pyfaidx wants a 1-based interval
        sequence = str(self.fasta.get_seq(trimmed_interval.chrom,
                                          trimmed_interval.start + 1,
                                          trimmed_interval.stop).seq).upper()
        # Fill truncated values with N's.
        pad_upstream = 'N' * max(-interval.start, 0)
        pad_downstream = 'N' * max(interval.end - chromosome_length, 0)
        return pad_upstream + sequence + pad_downstream

    def close(self):
        return self.fasta.close()

# Data Processing and Visualization Functions
def one_hot_encode(sequence):
  return kipoiseq.transforms.functional.one_hot_dna(sequence).astype(np.float32)

# @title `plot_tracks`

def plot_tracks(tracks, interval, height=1.5):
  fig, axes = plt.subplots(len(tracks), 1, figsize=(20, height * len(tracks)), sharex=True)
  for ax, (title, y) in zip(axes, tracks.items()):
    ax.fill_between(np.linspace(interval.start, interval.end, num=len(y)), y)
    ax.set_title(title)
    sns.despine(top=True, right=True, bottom=True)
  ax.set_xlabel(str(interval))
  plt.tight_layout()

def read_vcf(path):
    with gzip.open(path, 'rt') as f:
        lines = [l for l in f if not l.startswith('##')]
    return pd.read_csv(
        io.StringIO(''.join(lines)),
        dtype={'#CHROM': str, 'POS': int, 'ID': str, 'REF': str, 'ALT': str,
               'QUAL': str, 'FILTER': str, 'INFO': str},
        sep='\t'
    ).rename(columns={'#CHROM': 'CHROM'})

# def vcf_to_seq(target_interval, individual, vcf, fasta_extractor):
#   ## should be replaced with vcf_to_seq_faster
#   target_fa = fasta_extractor.extract(target_interval.resize(SEQUENCE_LENGTH))
#   window_coords = target_interval.resize(SEQUENCE_LENGTH)
#       # two haplotypes per individual
#   haplo_1 = list(target_fa[:])
#   haplo_2 = list(target_fa[:])

#   ref_mismatch_count = 0
#   for i,row in vcf.iterrows():
#     geno = row[individual].split("|")
#     if (row["POS"]-window_coords.start-1) >= len(haplo_2):
#       continue
#     if (row["POS"]-window_coords.start-1) < 0:
#       continue
#     if geno[0] == "1":
#       haplo_1[row["POS"]-window_coords.start-1] = row["ALT"]
#     if geno[1] == "1":
#       haplo_2[row["POS"]-window_coords.start-1] = row["ALT"]
#   return haplo_1, haplo_2

def vcf_to_seq_faster(target_interval, individual, vcf_file, fasta_extractor):
  # target_inverval is a kipoiseq interval, e.g. kipoiseq.Interval("chr22", 18118779, 18145669)
  # individual is the id of the individual in the vcf file

  target_fa = fasta_extractor.extract(target_interval.resize(SEQUENCE_LENGTH))
  window_coords = target_interval.resize(SEQUENCE_LENGTH)
      # two haplotypes per individual
  haplo_1 = list(target_fa[:])
  haplo_2 = list(target_fa[:])

  # Open the VCF file
  vcf_reader = cyvcf2.VCF(vcf_file)

  # Specific genomic region
  CHROM = window_coords.chrom
  START = max(1,window_coords.start)
  END = min(window_coords.end, fasta_extractor._chromosome_sizes[CHROM]-1)

  count1 = 0
  count2 = 0

  # Iterate through variants in the specified region
  for variant in vcf_reader(CHROM + ':' + str(START) + '-' + str(END)):
      # Access the individual's genotype using index (0-based) of the sample
      individual_index = vcf_reader.samples.index(individual)
      genotype = variant.genotypes[individual_index]
      ALT=variant.ALT[0]
      REF=variant.REF
      POS=variant.POS
      if REF == target_fa[POS - window_coords.start - 1]:
        if genotype[0] == 1:
          haplo_1[POS - window_coords.start - 1] = ALT
          count1 = count1 + 1
        if genotype[1] == 1:
          haplo_2[POS - window_coords.start - 1] = ALT
          count2 = count2 + 1
      else:
        print("ERROR: REF in vcf "+ REF + "!= REF from the build" + target_fa[POS - window_coords.start - 1])
  print("number of changes haplo1:")
  print(count1)
  print("number of changes haplo2:")
  print(count2)
  return haplo_1, haplo_2

# Comparison and Summary Statistics Functions


def get_diffmat(mat1, mat2):

    diffmat = mat1 - mat2
    abs_diffmat = np.abs(diffmat)

    colwise_maxes1 = np.max(mat1, axis=0)
    colwise_maxes2 = np.max(mat2, axis=0)

    colwise_maxes_maxes = np.maximum(colwise_maxes1, colwise_maxes2)

    relmax3_diffmat = diffmat / colwise_maxes_maxes
    relmax3_diffmat = np.abs(relmax3_diffmat)

    return relmax3_diffmat


def get_summary(arr):
    summary = {
        "mean": np.mean(arr),
        "median": np.median(arr),
        "minimum": np.min(arr),
        "maximum": np.max(arr),
        "q1": np.percentile(arr, 25),
        "q3": np.percentile(arr, 75),
    }
    return summary


def plot_hist(arr, bin_num, xlab='Value', ylab='Frequency', title='Histogram'):
    plt.hist(arr, bins=bin_num)
    plt.title(title)
    plt.xlabel(xlab)
    plt.ylabel(ylab)
    plt.show()

def column_correlations(mat1, mat2):
    if mat1.shape != mat2.shape:
        raise ValueError("Input matrices must have the same shape")

    num_columns = mat1.shape[1]
    correlations = np.empty(num_columns)

    for col in range(num_columns):
        correlation = np.corrcoef(mat1[:, col], mat2[:, col])[0, 1]
        correlations[col] = correlation

    return correlations

## Load Target Annotation Data
targets_txt = 'https://raw.githubusercontent.com/calico/basenji/master/manuscripts/cross2020/targets_human.txt'
# df_targets = pd.read_csv(targets_txt, sep='\t')
targets_slim_file = PRE + "models/enformer/targets_slims.csv"
targets_slim_df = pd.read_csv(targets_slim_file)

# Load Neanderthal vcf and predict epigenome

# download the vcf file from here https://uchicago.box.com/s/f682q1c6tl3cdnqwbvga0z72u5e203zs
# and put it in your data folder

# read VCFs and encode haplotypes
CHROM='chr5'
vcf_file = PRE + "neanderthal/AltaiNea.hg19_1000g." + CHROM + ".nomiss.snps_only.vcf.gz"

target_interval = kipoiseq.Interval(CHROM,96875939 , 96919716)
haplo1, haplo2 = vcf_to_seq_faster(target_interval, 'AltaiNea', vcf_file, fasta_extractor)
haplo0 = fasta_extractor.extract(target_interval.resize(SEQUENCE_LENGTH))

haplo1_enc = one_hot_encode("".join(haplo1))[np.newaxis]
haplo2_enc = one_hot_encode("".join(haplo2))[np.newaxis]
haplo0_enc = one_hot_encode("".join(haplo0))[np.newaxis]

print("number of changes");print(np.sum(haplo2_enc != haplo0_enc))

pred_human = model.predict_on_batch(haplo0_enc)['human'][0]
pred_altai = model.predict_on_batch((haplo1_enc + haplo2_enc)/2)['human'][0]

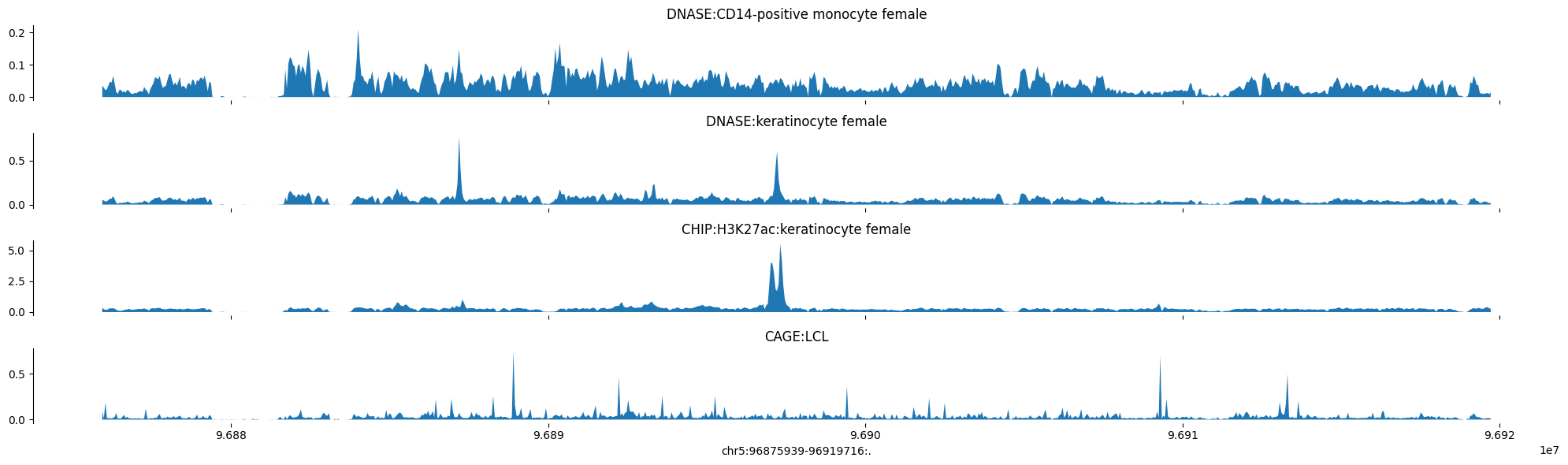

#  Plot Human epigenomes

predictions = pred_human
tracks = {'DNASE:CD14-positive monocyte female': predictions[:, 41],
          'DNASE:keratinocyte female': predictions[:, 42],
          'CHIP:H3K27ac:keratinocyte female': predictions[:, 706],
          'CAGE:LCL': np.log10(1 + predictions[:, 5110])}
plot_tracks(tracks, target_interval)

predictions = pred_altai
tracks = {'DNASE:CD14-positive monocyte female': predictions[:, 41],
          'DNASE:keratinocyte female': predictions[:, 42],
          'CHIP:H3K27ac:keratinocyte female': predictions[:, 706],
          'CAGE:LCL': np.log10(1 + predictions[:, 5110])}
plot_tracks(tracks, target_interval)

get_summary(get_diffmat(pred_human,pred_altai))
get_summary(column_correlations(pred_human,pred_altai))

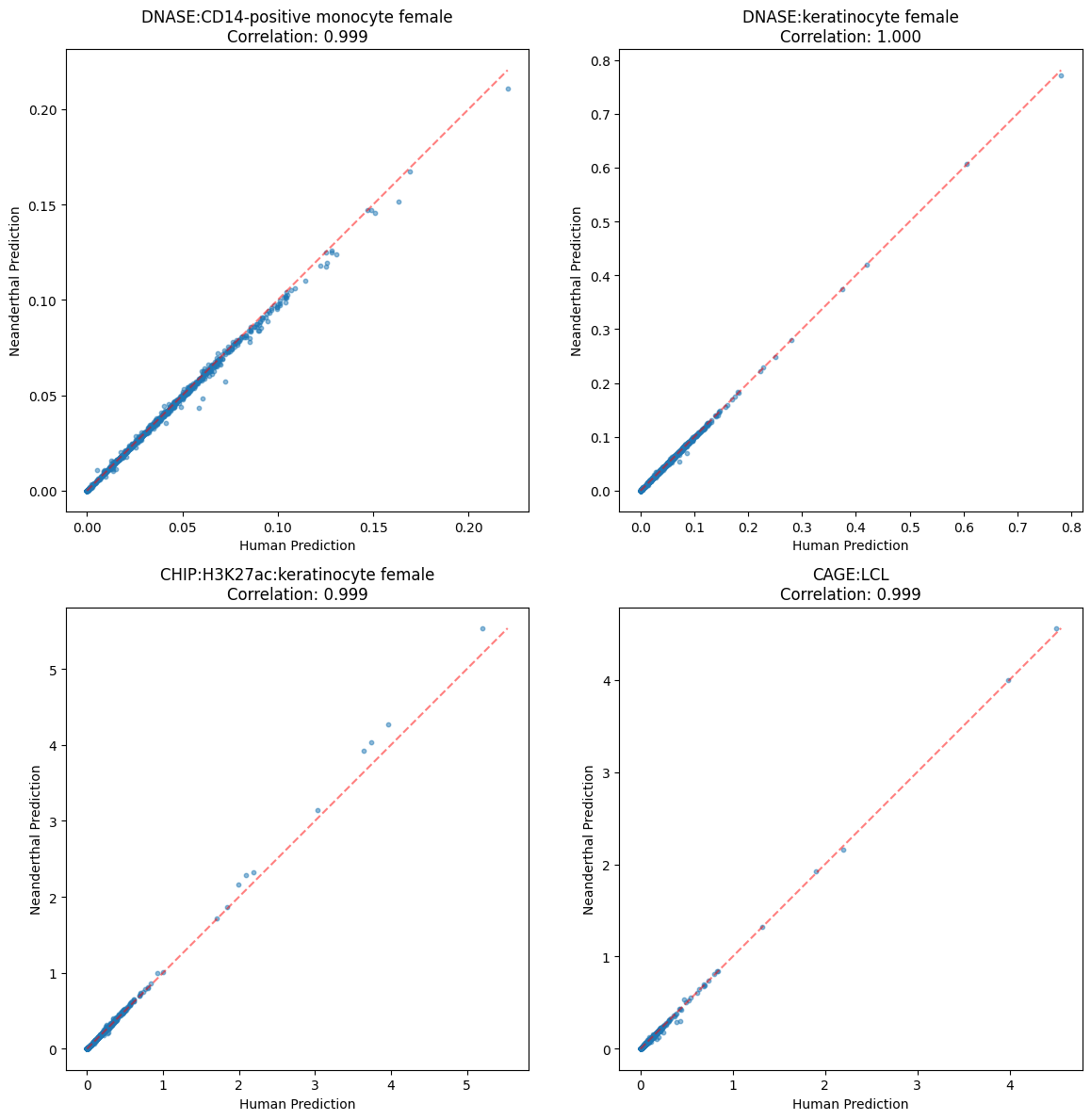

def plot_prediction_scatters(pred_human, pred_altai, tracks):
    fig, axes = plt.subplots(2, 2, figsize=(12, 12))
    axes = axes.flatten()

    for idx, (track_name, track_idx) in enumerate(tracks.items()):
        ax = axes[idx]

        # Get predictions for this track
        human_pred = pred_human[:, track_idx]
        altai_pred = pred_altai[:, track_idx]

        # Create scatter plot
        ax.scatter(human_pred, altai_pred, alpha=0.5, s=10)

        # Add diagonal line
        min_val = min(human_pred.min(), altai_pred.min())
        max_val = max(human_pred.max(), altai_pred.max())
        ax.plot([min_val, max_val], [min_val, max_val], 'r--', alpha=0.5)

        # Calculate correlation
        corr = np.corrcoef(human_pred, altai_pred)[0,1]

        # Add labels and title
        ax.set_xlabel('Human Prediction')
        ax.set_ylabel('Neanderthal Prediction')
        ax.set_title(f'{track_name}\nCorrelation: {corr:.3f}')

        # Make plot square
        ax.set_aspect('equal')

    plt.tight_layout()
    plt.show()

# Define tracks
tracks = {
    'DNASE:CD14-positive monocyte female': 41,
    'DNASE:keratinocyte female': 42,
    'CHIP:H3K27ac:keratinocyte female': 706,
    'CAGE:LCL': 5110
}

# Create the plots
plot_prediction_scatters(pred_human, pred_altai, tracks)
