Preprocessing and clustering

Quality Control

The scanpy function {func}~scanpy.pp.calculate_qc_metrics calculates common quality control (QC) metrics, which are largely based on calculateQCMetrics from scater {cite}McCarthy2017. One can pass specific gene population to {func}~scanpy.pp.calculate_qc_metrics in order to calculate proportions of counts for these populations. Mitochondrial, ribosomal and hemoglobin genes are defined by distinct prefixes as listed below.

# mitochondrial genes
adata.var["mt"] = adata.var_names.str.startswith("MT-")  # "MT-" for human, "Mt-" for mouse
# ribosomal genes
adata.var["ribo"] = adata.var_names.str.startswith(("RPS", "RPL"))
# hemoglobin genes
adata.var["hb"] = adata.var_names.str.contains("^HB[^(P)]")

sc.pp.calculate_qc_metrics(adata, qc_vars=["mt", "ribo", "hb"], inplace=True, log1p=True)

One can now inspect violin plots of some of the computed QC metrics:

• the number of genes expressed in the count matrix
• the total counts per cell
• the percentage of counts in mitochondrial genes

sc.pl.violin(adata, ["n_genes_by_counts", "total_counts", "pct_counts_mt"], jitter=0.4, multi_panel=True)

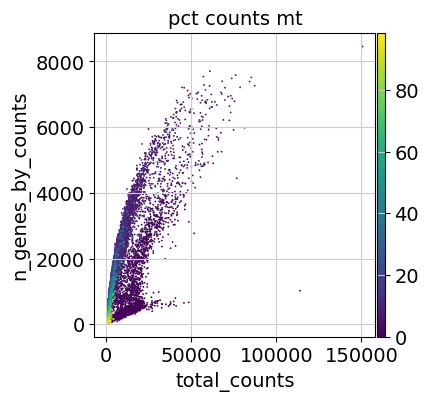

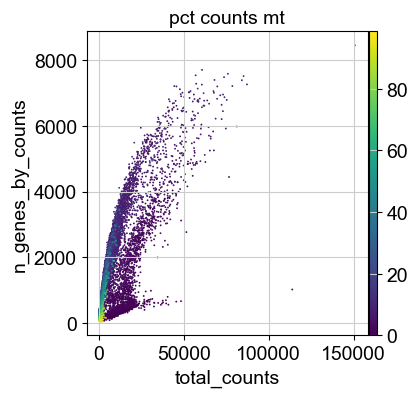

Additionally, it is useful to consider QC metrics jointly by inspecting a scatter plot colored by pct_counts_mt.

sc.pl.scatter(adata, "total_counts", "n_genes_by_counts", color="pct_counts_mt")

Based on the QC metric plots, one could now remove cells that have too many mitochondrial genes expressed or too many total counts by setting manual or automatic thresholds. However, it proved to be beneficial to apply a very permissive filtering strategy in the beginning for your single-cell analysis and filter low quality cells during clustering or revisit the filtering again at a later point. We therefore now only filter cells with less than 100 genes expressed and genes that are detected in less than 3 cells.

Additionally, it is important to note that for datasets with multiple batches, quality control should be performed for each sample individually as quality control thresholds can very substantially between batches.

sc.pp.filter_cells(adata, min_genes=100)
sc.pp.filter_genes(adata, min_cells=3)

sc.pp.scrublet(adata, batch_key="sample")

Normalization

The next preprocessing step is normalization. A common approach is count depth scaling with subsequent log plus one (log1p) transformation. Count depth scaling normalizes the data to a “size factor” such as the median count depth in the dataset, ten thousand (CP10k) or one million (CPM, counts per million). The size factor for count depth scaling can be controlled via target_sum in pp.normalize_total. We are applying median count depth normalization with log1p transformation (AKA log1PF).

# Saving count data
adata.layers["counts"] = adata.X.copy()

# Normalizing to median total counts
sc.pp.normalize_total(adata)
# Logarithmize the data:
sc.pp.log1p(adata)

Feature selection

As a next step, we want to reduce the dimensionality of the dataset and only include the most informative genes. This step is commonly known as feature selection. The scanpy function pp.highly_variable_genes annotates highly variable genes by reproducing the implementations of Seurat {cite}Satija2015, Cell Ranger {cite}Zheng2017, and Seurat v3 {cite}stuart2019comprehensive depending on the chosen flavor.

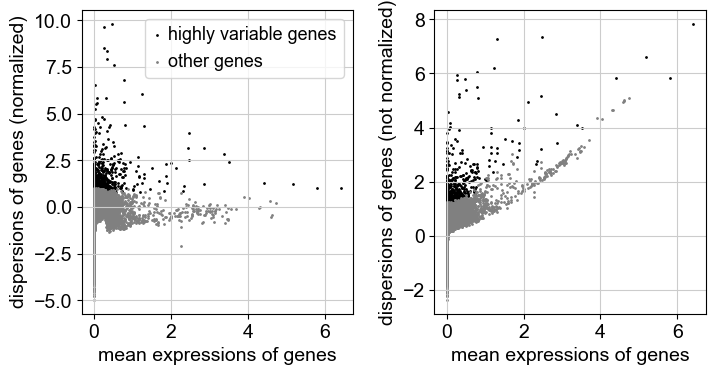

sc.pp.highly_variable_genes(adata, n_top_genes=2000, batch_key="sample")

sc.pl.highly_variable_genes(adata)

Dimensionality Reduction

Reduce the dimensionality of the data by running principal component analysis (PCA), which reveals the main axes of variation and denoises the data.

sc.tl.pca(adata)

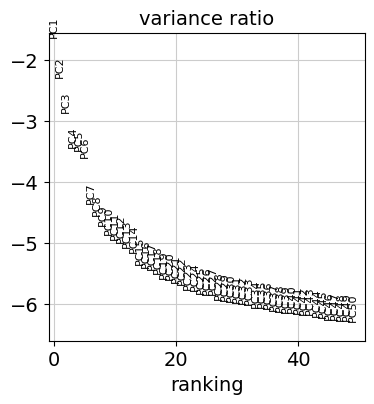

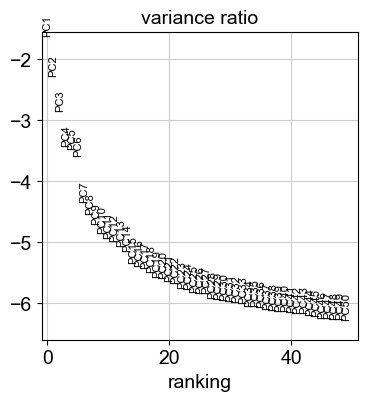

Let us inspect the contribution of single PCs to the total variance in the data. This gives us information about how many PCs we should consider in order to compute the neighborhood relations of cells, e.g. used in the clustering function {func}~scanpy.tl.leiden or {func}~scanpy.tl.tsne. In our experience, often a rough estimate of the number of PCs does fine.

sc.pl.pca_variance_ratio(adata, n_pcs=50, log=True)

Visualization

Let us compute the neighborhood graph of cells using the PCA representation of the data matrix.

sc.pp.neighbors(adata)

/home/runner/miniconda3/envs/tutorials/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

We suggest embedding the graph in two dimensions using UMAP (McInnes et al., 2018), see below.

sc.tl.umap(adata)

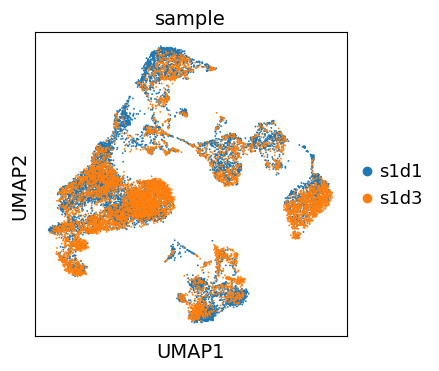

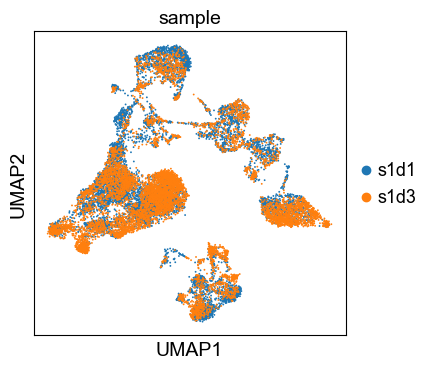

We can now visualize the UMAP according to the sample.

sc.pl.umap(adata, color="sample")

Even though the data considered in this tutorial includes two different samples, we only observe a minor batch effect and we can continue with clustering and annotation of our data.

If you inspect batch effects in your UMAP it can be beneficial to integrate across samples and perform batch correction/integration.

Clustering

As with Seurat and many other frameworks, we recommend the Leiden graph-clustering method (community detection based on optimizing modularity) {cite}traag2019louvain. Note that Leiden clustering directly clusters the neighborhood graph of cells, which we already computed in the previous section.

sc.tl.leiden(adata, flavor="igraph")

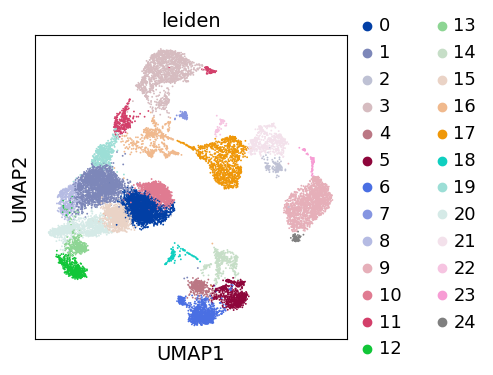

sc.pl.umap(adata, color=["leiden"])

Re-assess quality control and cell filtering

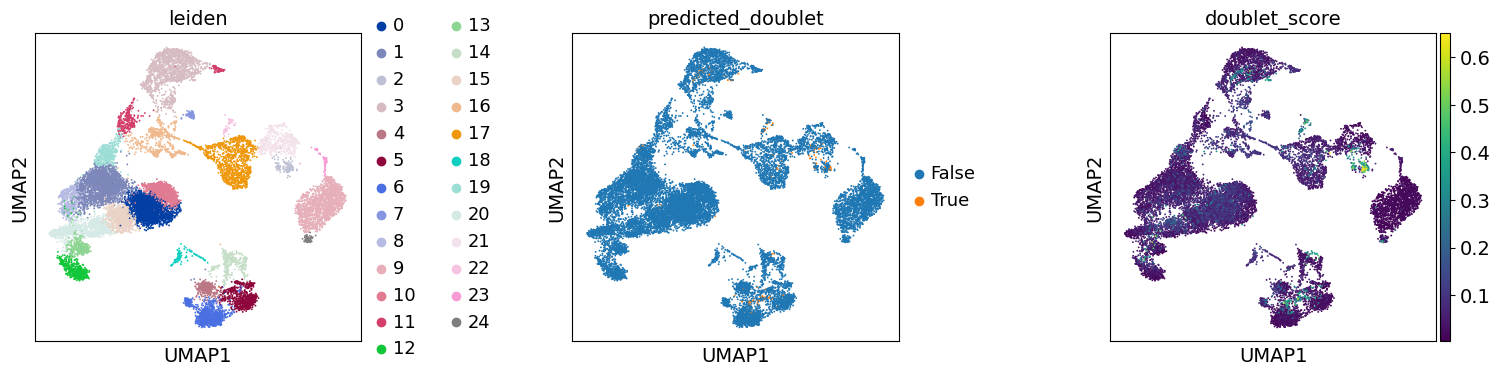

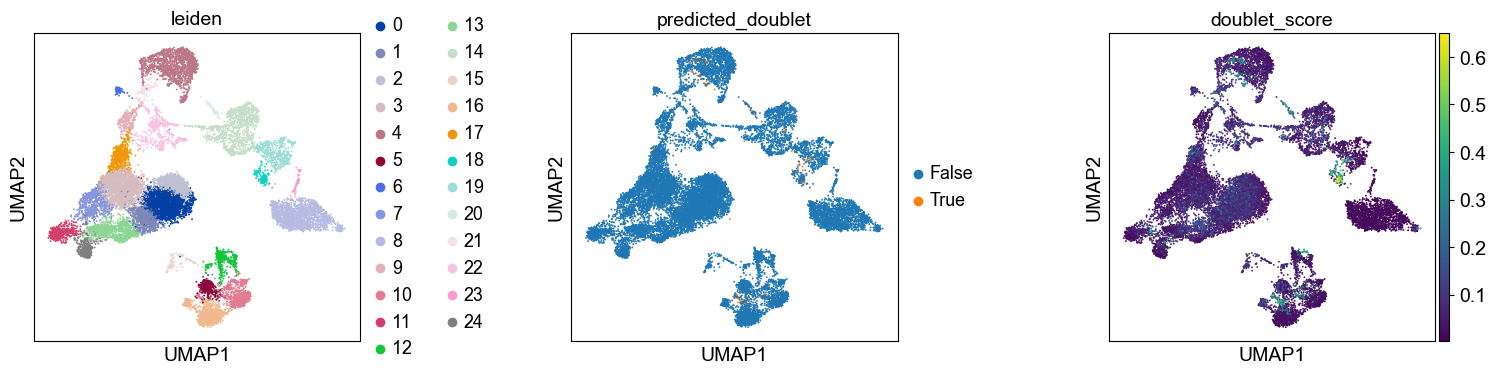

As indicated before, we will now re-assess our filtering strategy by visualizing different QC metrics using UMAP.

adata.obs["predicted_doublet"] = adata.obs["predicted_doublet"].astype("category")
sc.pl.umap(
    adata,
    color=["leiden", "predicted_doublet", "doublet_score"],
    # increase horizontal space between panels
    wspace=0.5,
)

We can now subset the AnnData object to exclude cells predicted as doublets:

adata = adata[~adata.obs["predicted_doublet"].to_numpy()].copy()

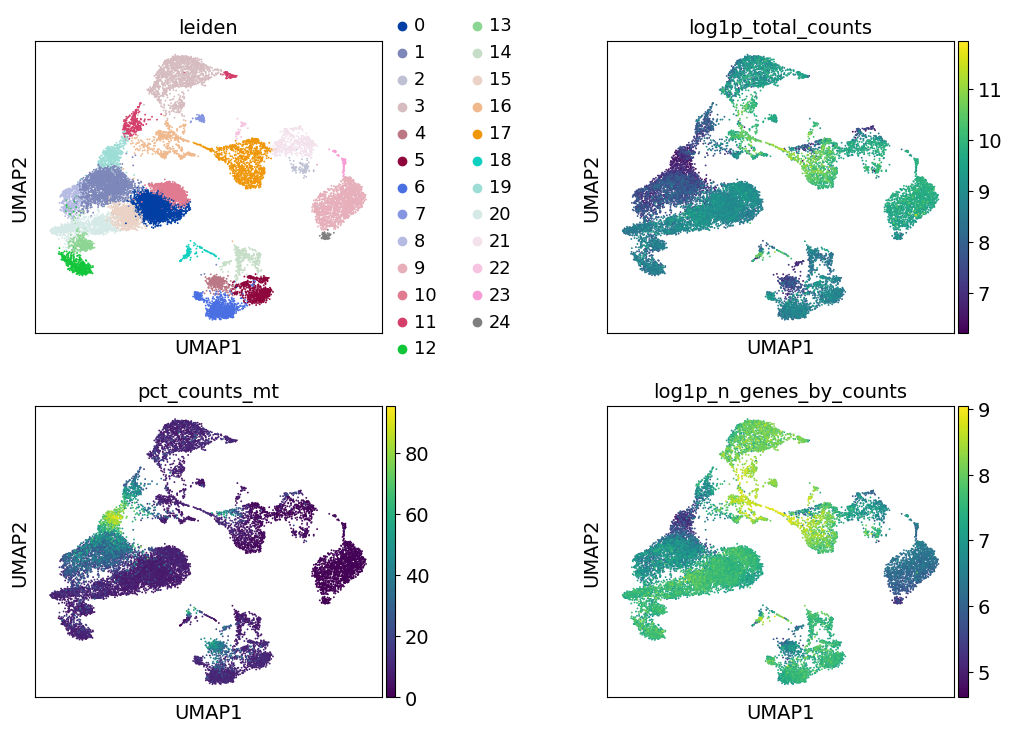

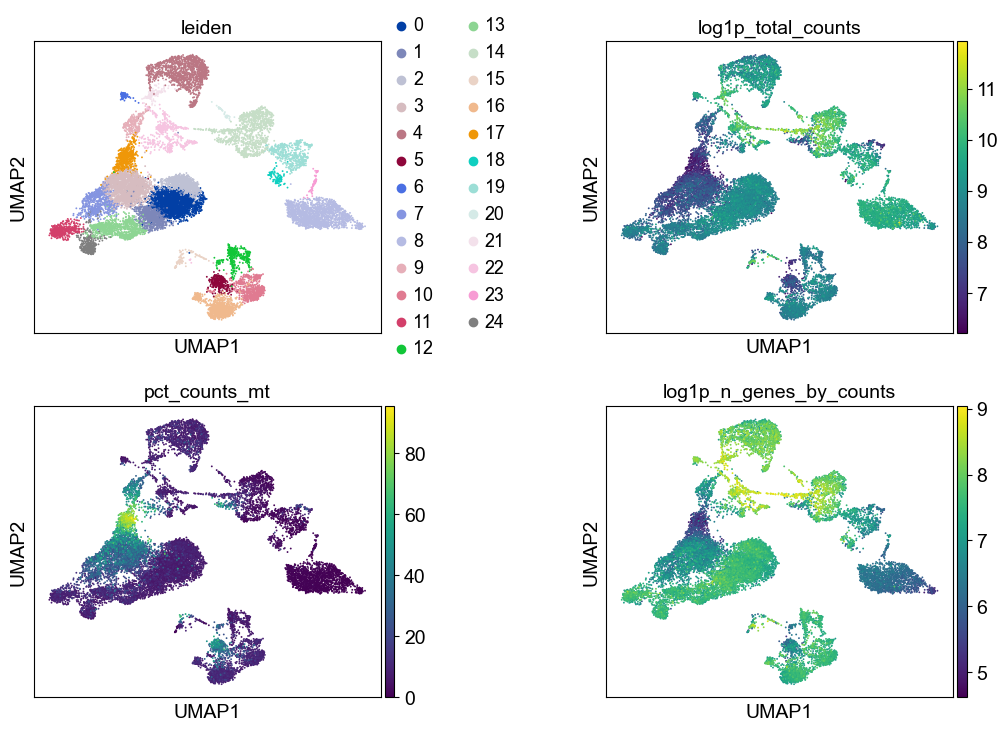

sc.pl.umap(
    adata, color=["leiden", "log1p_total_counts", "pct_counts_mt", "log1p_n_genes_by_counts"], wspace=0.5, ncols=2
)

Cell-type annotation

import celltypist as ct
import decoupler as dc

We have now reached a point where we have obtained a set of cells with decent quality, and we can proceed to their annotation to known cell types. Typically, this is done using genes that are exclusively expressed by a given cell type, or in other words these genes are the marker genes of the cell types, and are thus used to distinguish the heterogeneous groups of cells in our data. Previous efforts have collected and curated various marker genes into available resources, such as CellMarker, TF-Marker, and PanglaoDB.

Commonly and classically, cell type annotation uses those marker genes subsequent to the grouping of the cells into clusters. So, let’s generate a set of clustering solutions which we can then use to annotate our cell types. Here, we will use the Leiden clustering algorithm which will extract cell communities from our nearest neighbours graph.

sc.tl.leiden(adata, flavor="igraph", key_added="leiden_res0_02", resolution=0.02)
sc.tl.leiden(adata, flavor="igraph", key_added="leiden_res0_5", resolution=0.5)
sc.tl.leiden(adata, flavor="igraph", key_added="leiden_res2", resolution=2)

Notably, the number of clusters that we define is largely arbitrary, and so is the resolution parameter that we use to control for it. As such, the number of clusters is ultimately bound to the stable and biologically-meaningful groups that we can ultimately distringuish, typically done by experts in the corresponding field or by using expert-curated prior knowledge in the form of markers.

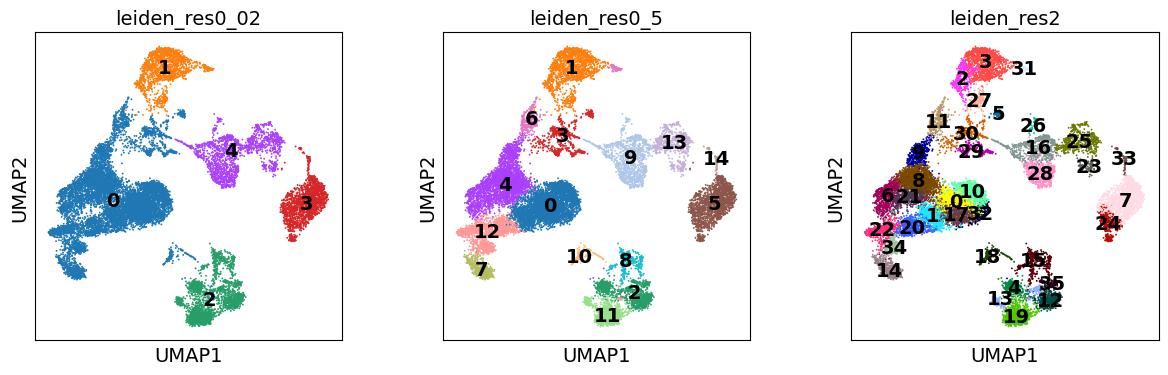

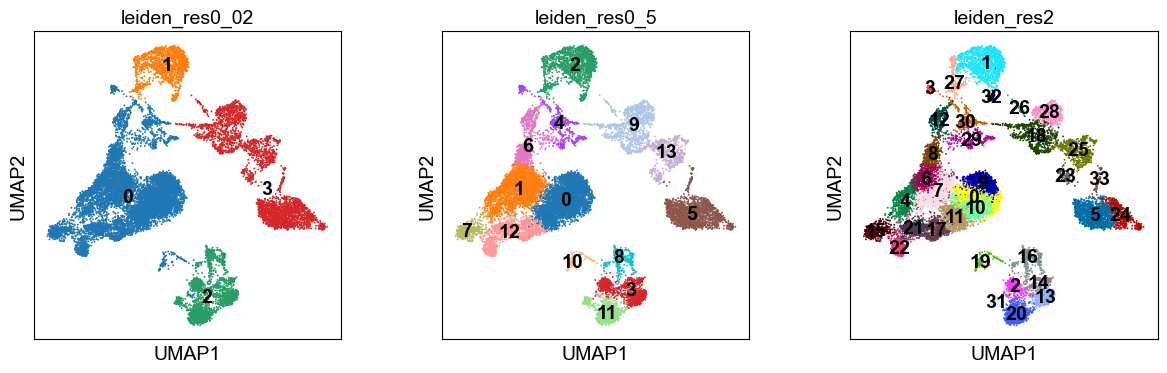

sc.pl.umap(
    adata,
    color=["leiden_res0_02", "leiden_res0_5", "leiden_res2"],
    legend_loc="on data",
)

Though UMAPs should not be over-interpreted, here we can already see that in the highest resolution our data is over-clustered, while the lowest resolution is likely grouping cells which belong to distinct cell identities.

marker_genes = {
    "CD14+ Mono": ["FCN1", "CD14"],
    "CD16+ Mono": ["TCF7L2", "FCGR3A", "LYN"],
    # Note: DMXL2 should be negative
    "cDC2": ["CST3", "COTL1", "LYZ", "DMXL2", "CLEC10A", "FCER1A"],
    "Erythroblast": ["MKI67", "HBA1", "HBB"],
    # Note HBM and GYPA are negative markers
    "Proerythroblast": ["CDK6", "SYNGR1", "HBM", "GYPA"],
    "NK": ["GNLY", "NKG7", "CD247", "FCER1G", "TYROBP", "KLRG1", "FCGR3A"],
    "ILC": ["ID2", "PLCG2", "GNLY", "SYNE1"],
    "Naive CD20+ B": ["MS4A1", "IL4R", "IGHD", "FCRL1", "IGHM"],
    # Note IGHD and IGHM are negative markers
    "B cells": ["MS4A1", "ITGB1", "COL4A4", "PRDM1", "IRF4", "PAX5", "BCL11A", "BLK", "IGHD", "IGHM"],
    "Plasma cells": ["MZB1", "HSP90B1", "FNDC3B", "PRDM1", "IGKC", "JCHAIN"],
    "Plasmablast": ["XBP1", "PRDM1", "PAX5"],  # Note PAX5 is a negative marker
    "CD4+ T": ["CD4", "IL7R", "TRBC2"],
    "CD8+ T": ["CD8A", "CD8B", "GZMK", "GZMA", "CCL5", "GZMB", "GZMH", "GZMA"],
    "T naive": ["LEF1", "CCR7", "TCF7"],
    "pDC": ["GZMB", "IL3RA", "COBLL1", "TCF4"],
}

def group_max(adata: sc.AnnData, groupby: str) -> str:
    import pandas as pd

    agg = sc.get.aggregate(adata, by=groupby, func="mean")
    return pd.Series(agg.layers["mean"].sum(1), agg.obs[groupby]).idxmax()

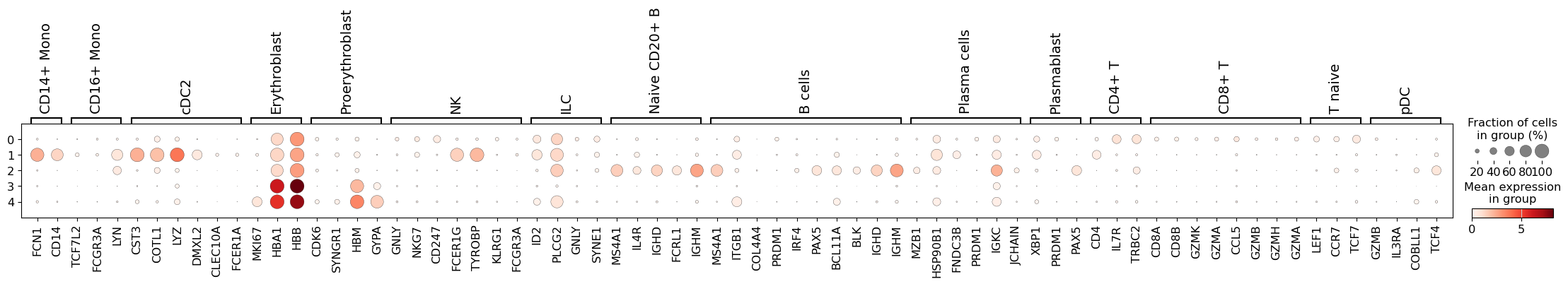

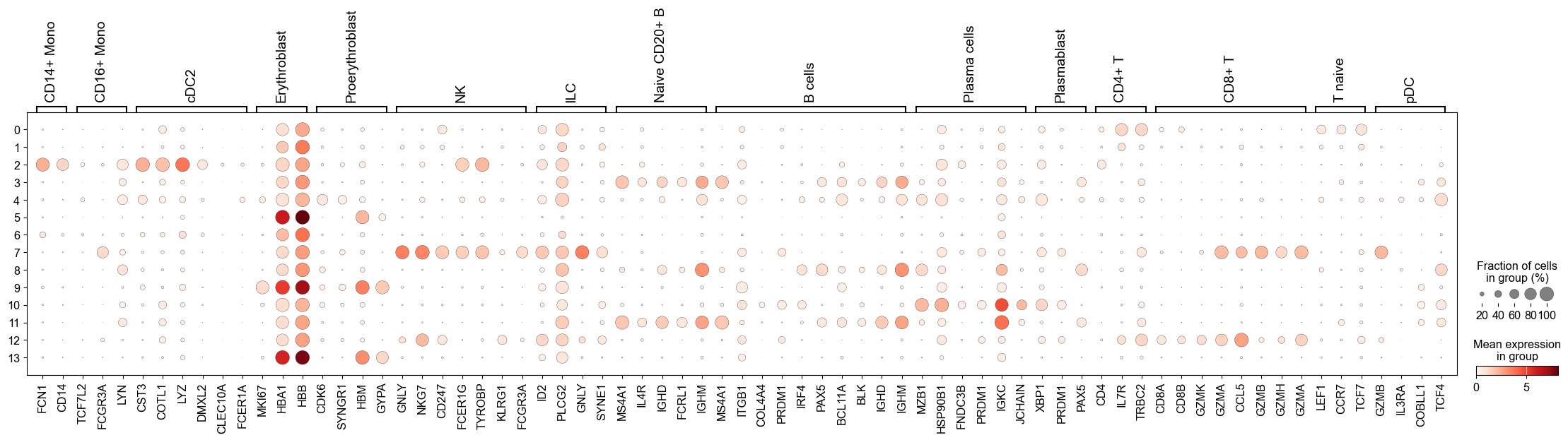

sc.pl.dotplot(adata, marker_genes, groupby="leiden_res0_02")

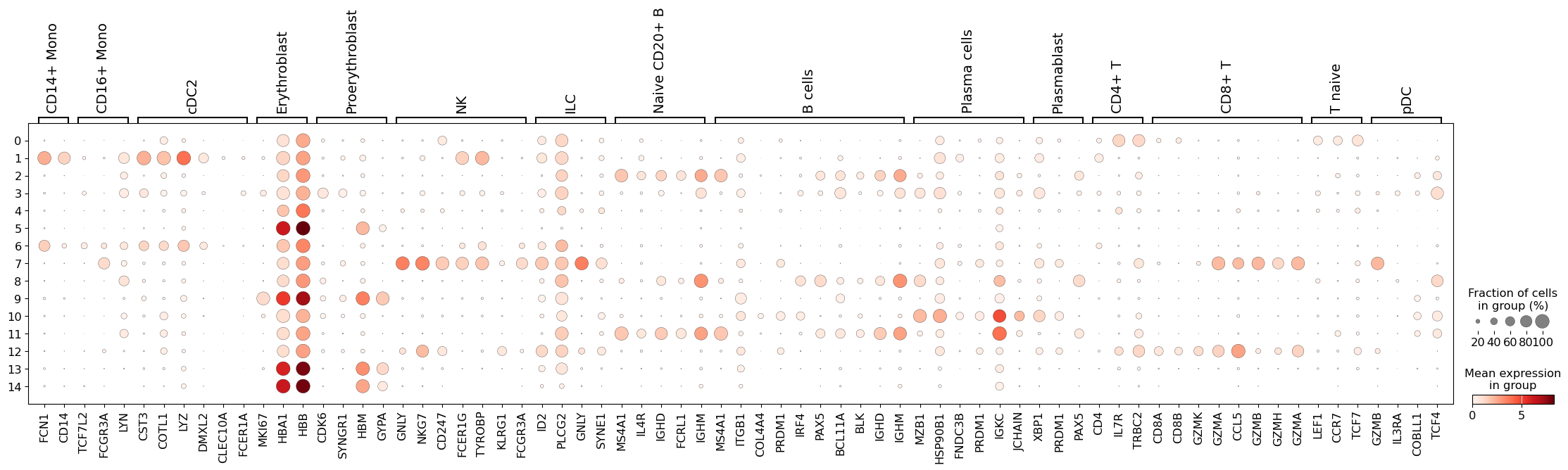

sc.pl.dotplot(adata, marker_genes, groupby="leiden_res0_5")

ct.models.download_models(model=["Immune_All_Low.pkl"], force_update=True)

📜 Retrieving model list from server https://celltypist.cog.sanger.ac.uk/models/models.json
📚 Total models in list: 50
📂 Storing models in /home/runner/.celltypist/data/models
💾 Total models to download: 1
💾 Downloading model [1/1]: Immune_All_Low.pkl

model = ct.models.Model.load(model="Immune_All_Low.pkl")
predictions = ct.annotate(adata, model="Immune_All_Low.pkl", majority_voting=True, over_clustering="leiden_res0_5")
# convert back to anndata||
adata = predictions.to_adata()

⚠️ Warning: invalid expression matrix, expect ALL genes and log1p normalized expression to 10000 counts per cell. The prediction result may not be accurate
🔬 Input data has 16828 cells and 23427 genes
🔗 Matching reference genes in the model
🧬 5852 features used for prediction
⚖️ Scaling input data
🖋️ Predicting labels
✅ Prediction done!
🗳️ Majority voting the predictions
✅ Majority voting done!

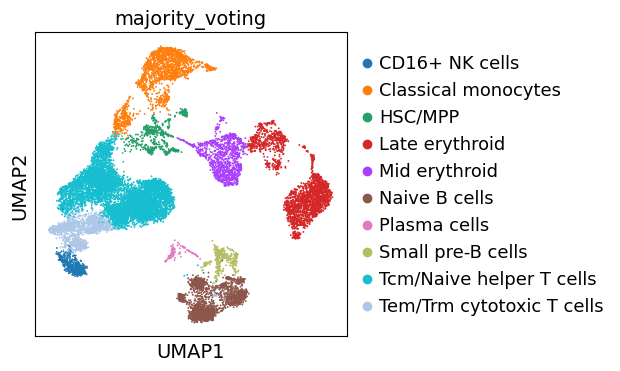

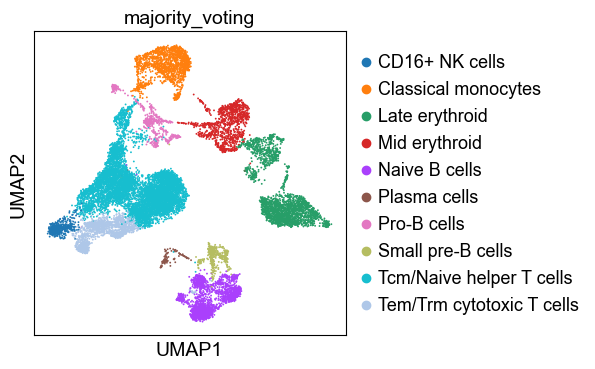

sc.pl.umap(adata, color="majority_voting", ncols=1)

# Query Omnipath and get PanglaoDB
markers = dc.get_resource(name="PanglaoDB", organism="human")
# Keep canonical cell type markers alone
markers = markers[markers["canonical_marker"]]

# Remove duplicated entries
markers = markers[~markers.duplicated(["cell_type", "genesymbol"])]
markers.head()

Downloading data from `https://omnipathdb.org/queries/enzsub?format=json`
Downloading data from `https://omnipathdb.org/queries/interactions?format=json`
Downloading data from `https://omnipathdb.org/queries/complexes?format=json`
Downloading data from `https://omnipathdb.org/queries/annotations?format=json`
Downloading data from `https://omnipathdb.org/queries/intercell?format=json`
Downloading data from `https://omnipathdb.org/about?format=text`
Downloading data from `https://omnipathdb.org/resources?format=json`
0.00B [00:00, ?B/s]56.5kB [00:00, 168MB/s]
Downloading annotations for all proteins from the following resources: `['PanglaoDB']`
Downloading data from `https://omnipathdb.org/annotations?entity_types=protein&format=tsv&resources=PanglaoDB`
0.00B [00:00, ?B/s]449kB [00:00, 4.59MB/s]1.78MB [00:00, 6.86MB/s]4.76MB [00:00, 15.6MB/s]5.91MB [00:00, 15.9MB/s]

dc.run_mlm(mat=adata, net=markers, weight=None, source="cell_type", target="genesymbol", verbose=True, use_raw=False)

Running mlm on mat with 16828 samples and 23427 targets for 118 sources.

  0%|          | 0/2 [00:00<?, ?it/s] 50%|█████     | 1/2 [00:05<00:05,  5.44s/it]100%|██████████| 2/2 [00:09<00:00,  4.45s/it]100%|██████████| 2/2 [00:09<00:00,  4.60s/it]

adata.obsm["mlm_estimate"].head()

acts = dc.get_acts(adata=adata, obsm_key="mlm_estimate")

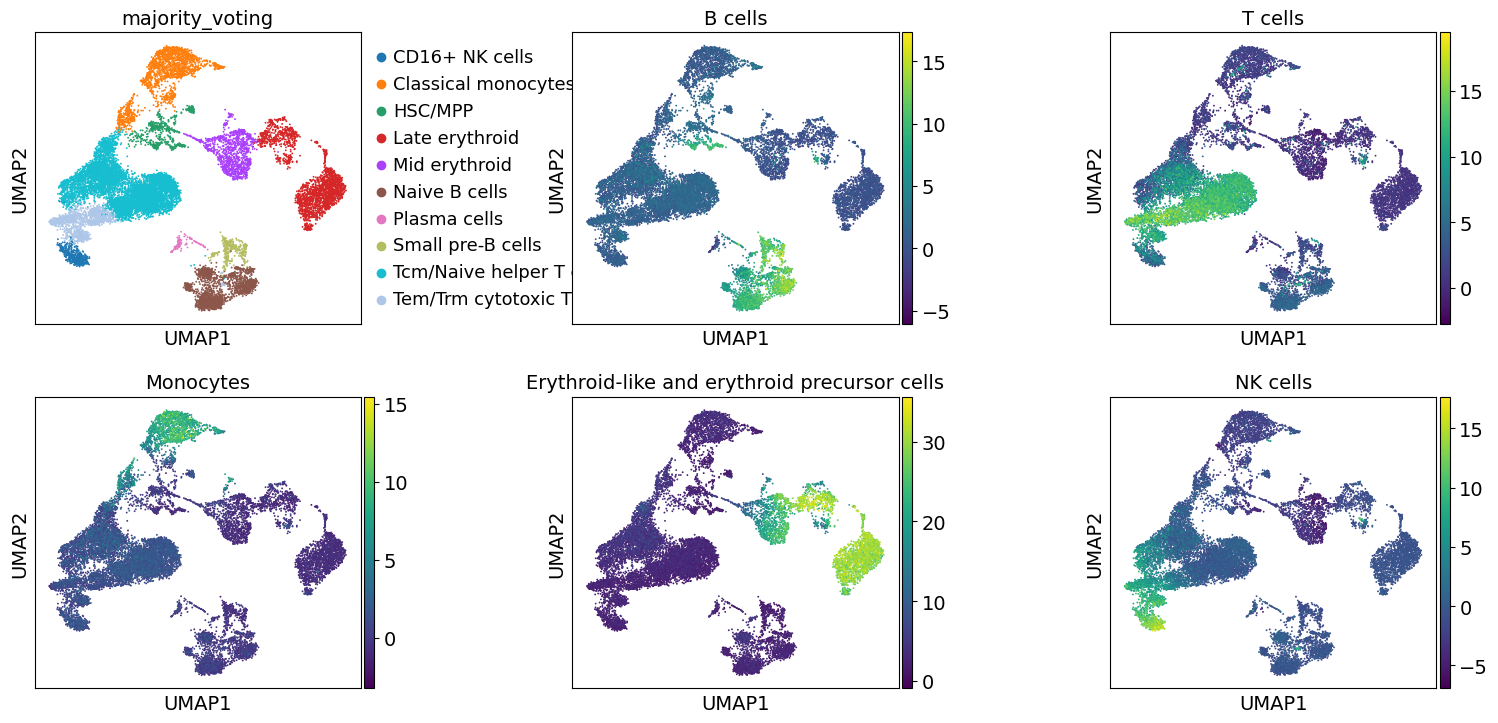

sc.pl.umap(
    acts,
    color=[
        "majority_voting",
        "B cells",
        "T cells",
        "Monocytes",
        "Erythroid-like and erythroid precursor cells",
        "NK cells",
    ],
    wspace=0.5,
    ncols=3,
)

mean_enr = dc.summarize_acts(acts, groupby="leiden_res0_5", min_std=1.0)
annotation_dict = dc.assign_groups(mean_enr)
adata.obs["dc_anno"] = [annotation_dict[clust] for clust in adata.obs["leiden_res0_5"]]

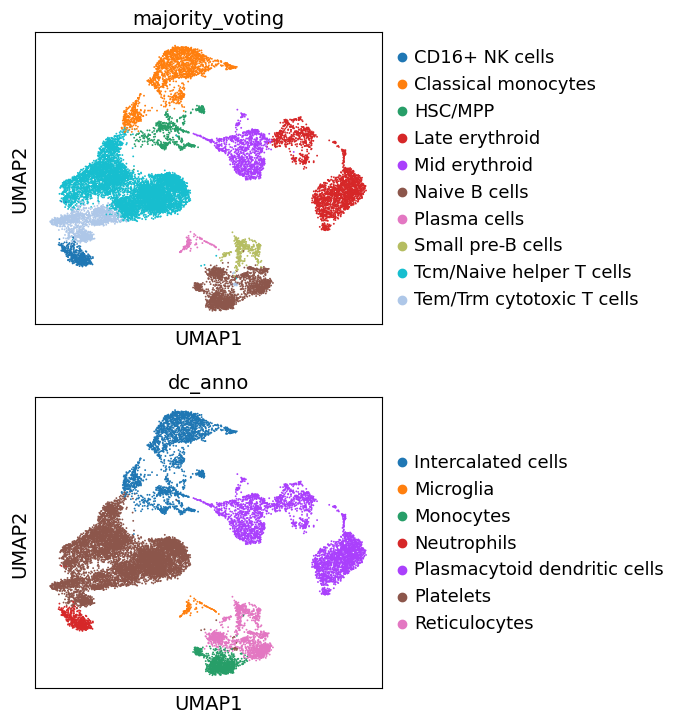

sc.pl.umap(adata, color=["majority_voting", "dc_anno"], ncols=1)

... storing 'dc_anno' as categorical

# Obtain cluster-specific differentially expressed genes
sc.tl.rank_genes_groups(adata, groupby="leiden_res0_5")
# Filter those
sc.tl.filter_rank_genes_groups(adata, min_fold_change=1.5)

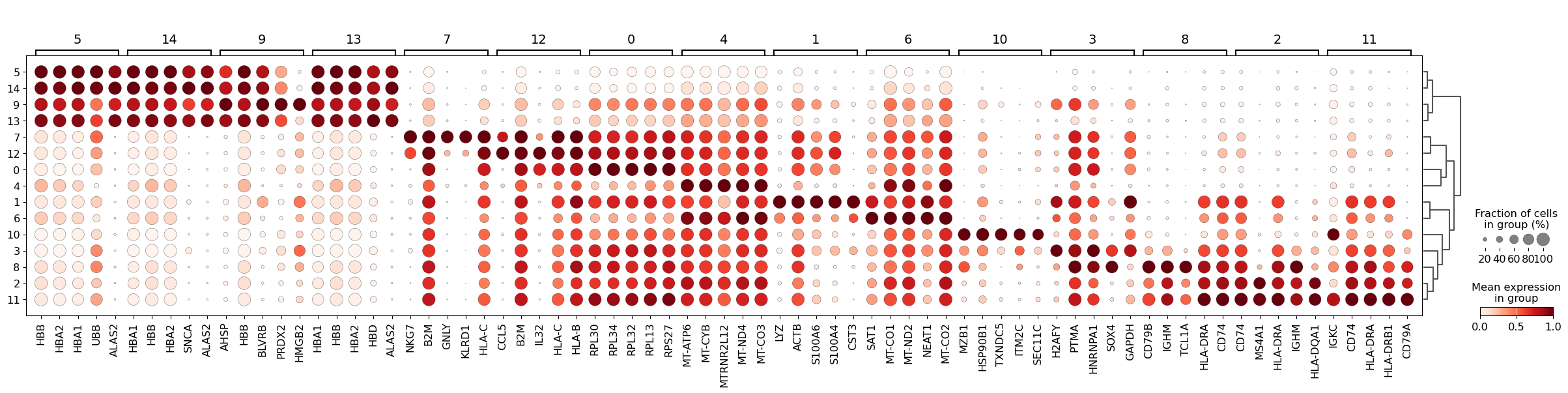

sc.pl.rank_genes_groups_dotplot(adata, groupby="leiden_res0_5", standard_scale="var", n_genes=5)

WARNING: dendrogram data not found (using key=dendrogram_leiden_res0_5). Running `sc.tl.dendrogram` with default parameters. For fine tuning it is recommended to run `sc.tl.dendrogram` independently.

cluster3_genes = ["LYZ", "ACTB", "S100A6", "S100A4", "CST3"]

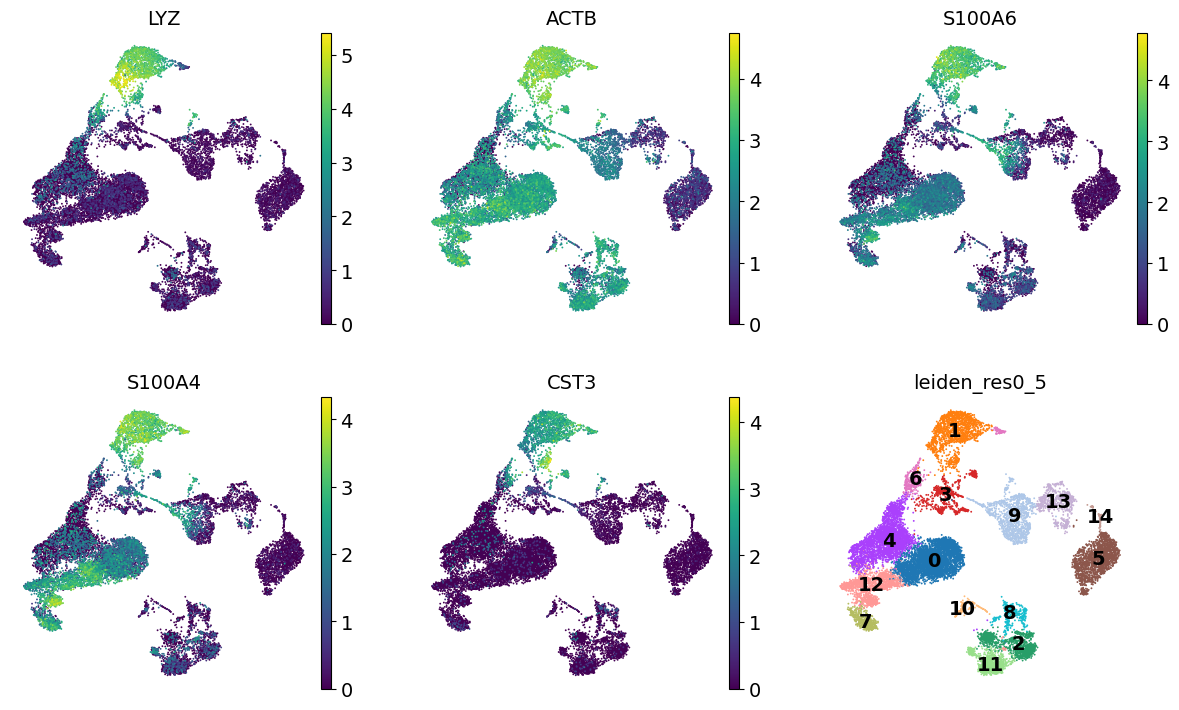

sc.pl.umap(adata, color=[*cluster3_genes, "leiden_res0_5"], legend_loc="on data", frameon=False, ncols=3)

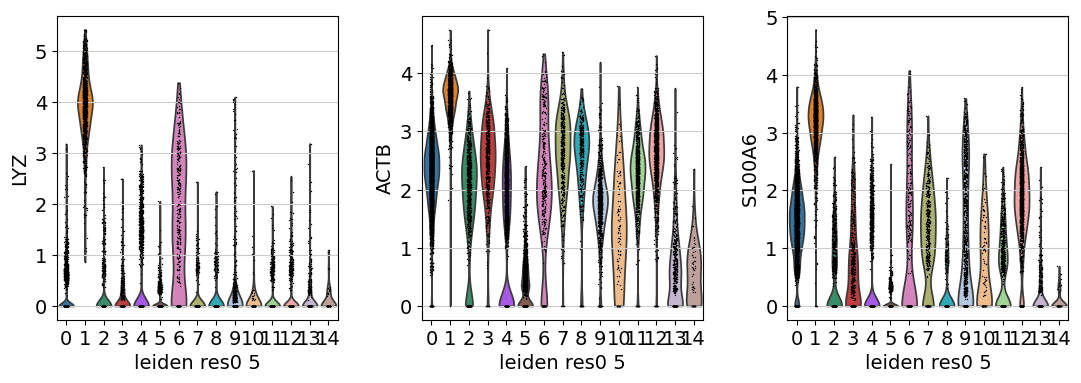

sc.pl.violin(adata, keys=cluster3_genes[0:3], groupby="leiden_res0_5", multi_panel=True)

Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.
